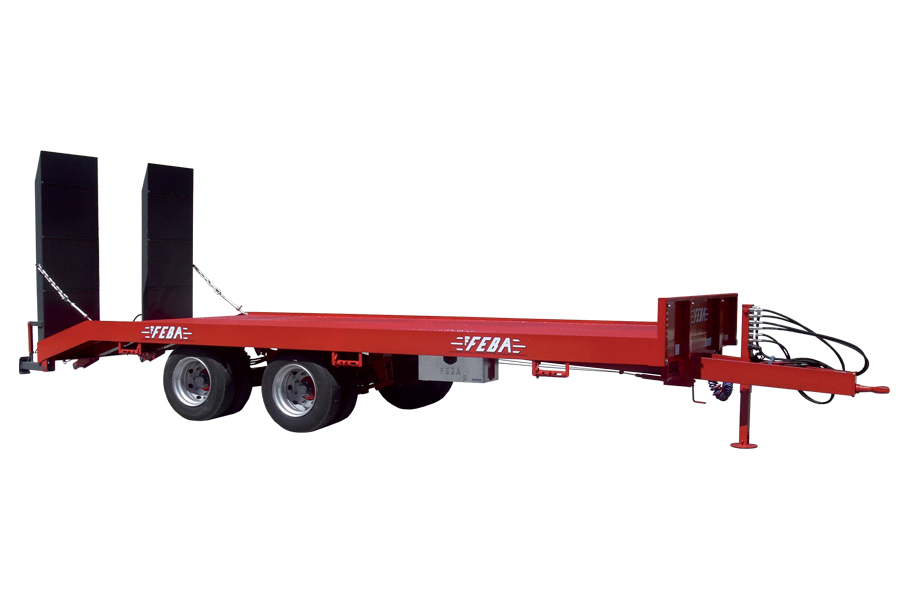

TRAILERS WITH TWO AXLES CLOSE TOGETHER

STANDARD EQUIPMENT

Tandem with parabolic spring suspension
Fixed platform with slide
Servo Hydraulic steering
front and side winches
hydraulic ramps 600x2200 mm
Feet of automatic support
rear axle steering
Light and registration documents facility on the road

OPTIONAL EXTRAS

Powered front axle

Data Sheet

SCHEDA TECNICA

DATA SHEET

CARRELLI A DUE ASSI RAVVICINATI TRAILERS WITH TWO AXLES CLOSE TOGETHER
TIPO	DIMENSIONE PIANALE	PORTATA OMOL. COMPL. KG	TARA KG.	RUOTE	FRENI
TYPE	FLOOR DIMENSIONS	TOTAL HOMOLOGAT. CAPACITY KG	UNLADEN WEIGHT KG	WHEELS	BRAKES
TCFR140 ruota singola	6,50x2,50	14000	3750	385/55R19.5 nv. 435/50R19.5 us.	PNEUM. IDRAUL.
TCFR140 single wheel	6,50x2,50	14000	3750	385/55R19.5 nv. 435/50R19.5 us.	PNEUM. IDRAUL.
TCFR140 ruote gemellate	6,50x2,50	14000	3750	215/75R17.5 us. 215/75R17.5 nv.	PNEUM. IDRAUL.
TCFR140 twinned wheels	6,50x2,50	14000	3750	215/75R17.5 us. 215/75R17.5 nv.	PNEUM. IDRAUL.
