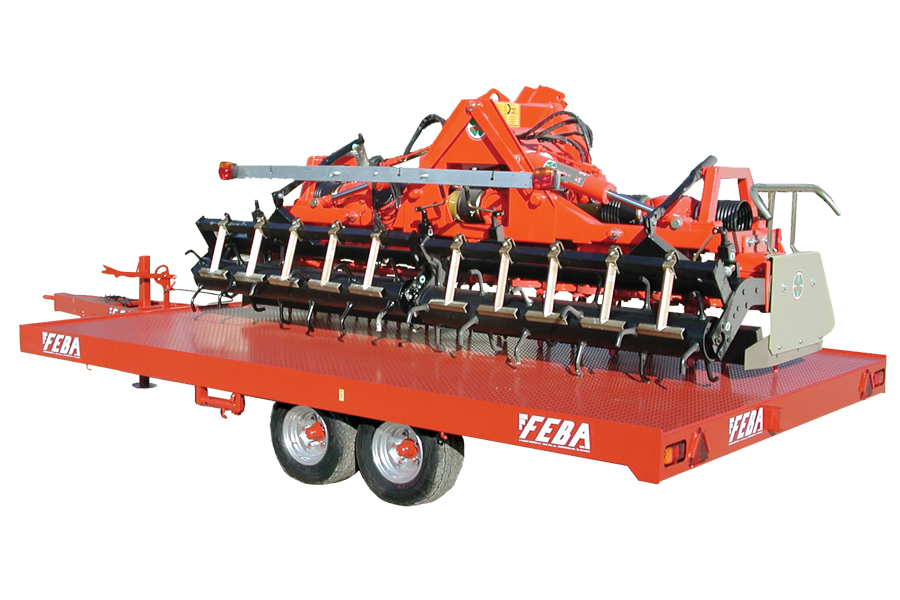

TWIN AXLE CART TOOL HOLDERS

TWIN AXLE CART TOOL HOLDERS

Homologated for transporting agricultural vehicles with four tandem wheels
TWIN AXLE CART TOOL HOLDERS
TWIN AXLE CART TOOL HOLDERS

STANDARD EQUIPMENT

Fixed embossed sheet steel floor
Mechanical drawbar jack
Front and side winches
Light system and documents for on-road registration

OPTIONAL EXTRAS

Hydraulic brakes
Hydraulic tipping with quick-coupling double-effect piston
Hydraulic drawbar jack with locking valve
Side winches
Connectors for front and rear imperial
Small tailboard
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
CARRELLO BIASSE PORTA ATTREZZI
TWIN AXLE CART TOOL HOLDERS
TIPO DIMENSIONE PIANALE ALTEZZA CM PORTATA OMOL. COMPL. KG TARA KG. RUOTE FRENI
TYPE FLOOR DIMENSIONS HEIGHT CM TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG WHEELS BRAKES
FBT 45 4.50X2.55 52 4000 1100 155/70R12 nv.
20.5x8.00-10 nv.
23x10.50-12 nv. 		MECC.
FBT 45 4.50X2.55 52 4000 1100 155/70R12 nv.
20.5x8.00-10 nv.
23x10.50-12 nv. 		MECC.
FBT 45 R 4.50X2.00 52 6000 1400 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
FBT 45 R 4.50X2.00 52 6000 1400 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
FBT 45 R 4.50X2.55 52 6000 1500 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
FBT 45 R 4.50X2.55 52 6000 1500 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
FBT 45 R 5.50X2.55 52 6000 1760 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
FBT 45 R 5.50X2.55 52 6000 1760 20.5/50-10 PR12 nv.
20,5x8.00-10 nv. 		IDRAUL.
