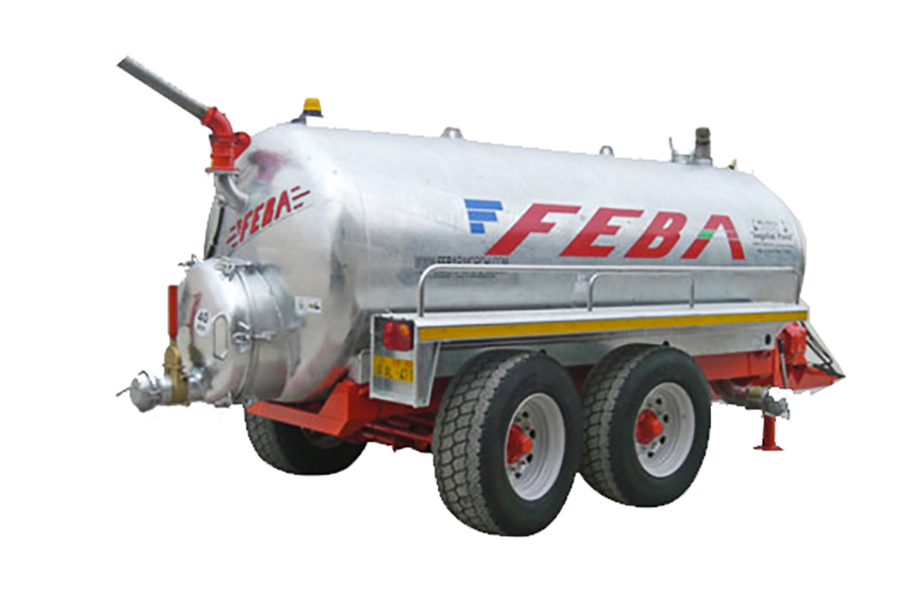

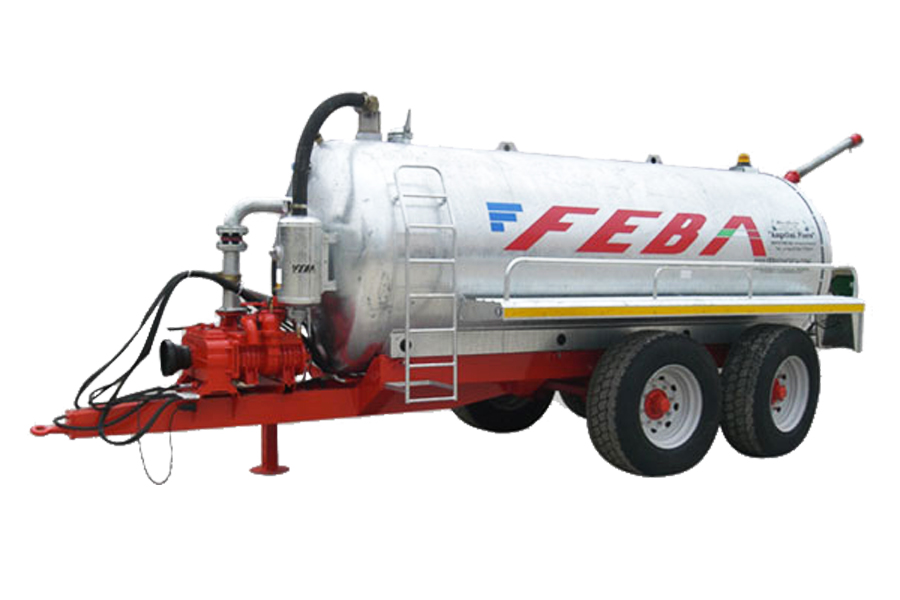

CARRO BOTTE DOUBLE-AXLE

Type-tested far sewage transport with warmed or painted galvanized tank

STANDARD EQUIPMENT

Independent frame from the cistern
Tank with fully opening bottom
cantilever suspension
cardan shaft
Gate valve hydraulic control
mm. 2000 2000 mm iron pipe and hose
exhaust fan jet and lateral jet
Hydraulic Slave-foot
lighting system and registration road documents

APPLICATIONS ON REQUEST

Hydraulic Slave-35 BC - 60 BC
Hydraulic Brake BC 35
Suspension with crossbow BC 35- 60 BC
Group centrifugal pump with hydraulic swivel jet
Hydraulic opening device gate 35 BC side gate 120 mm - 150 mm

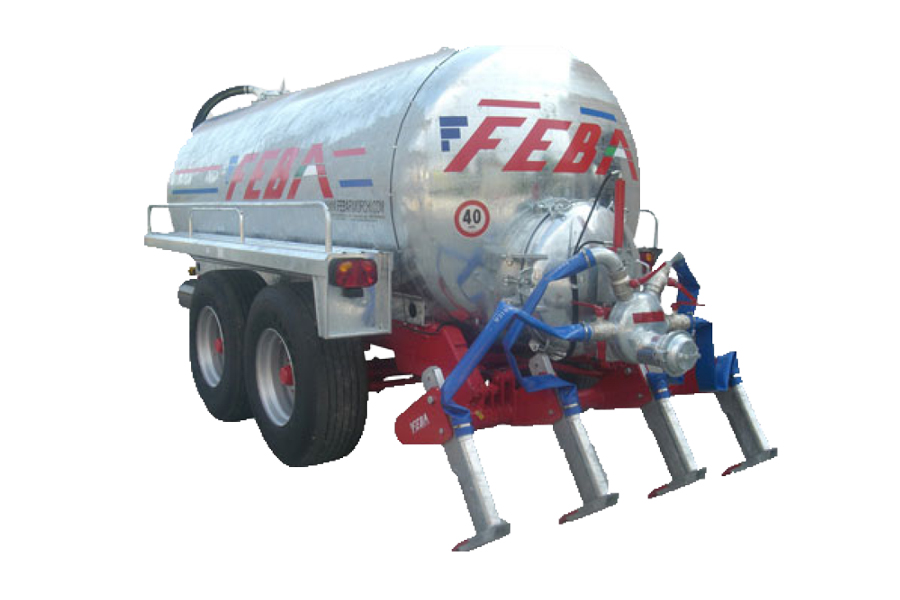

Burying a 2 or 4 subsoilers

Data Sheet

SCHEDA TECNICA

DATA SHEET

CARRO BOTTE BIASSE CARRO BOTTE DOUBLE-AXLE
TIPO	CAPACIA'	DEPRESSIONE	SARAC.	RUOTE	FRENI
TYPE	CAPACITY	VACUUM PUMP	GATE VALVE	WHEELS	BRAKES
BC 140	8500 lt.	MEC. 8500	mm 150	385/65R22.5 us. 425/65R22.5 us.	PNEUM. IDRAUL.
BC 140	8500 lt.	MEC. 8500	mm 150	385/65R22.5 us. 425/65R22.5 us.	PNEUM. HIDRAULIC
BC 140	10500 lt.	MEC. 12500	mm 150	385/65R22.5 us. 425/65R22.5 us.	PNEUM. IDRAUL.
BC 140	10500 lt.	MEC. 12500	mm 150	385/65R22.5 us. 425/65R22.5 us.	PNEUM. HIDRAULIC
