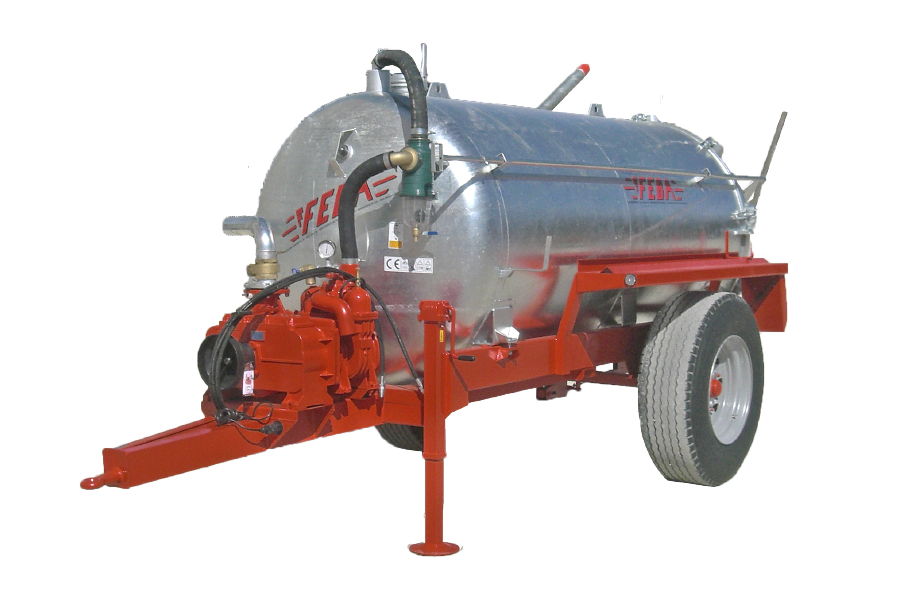

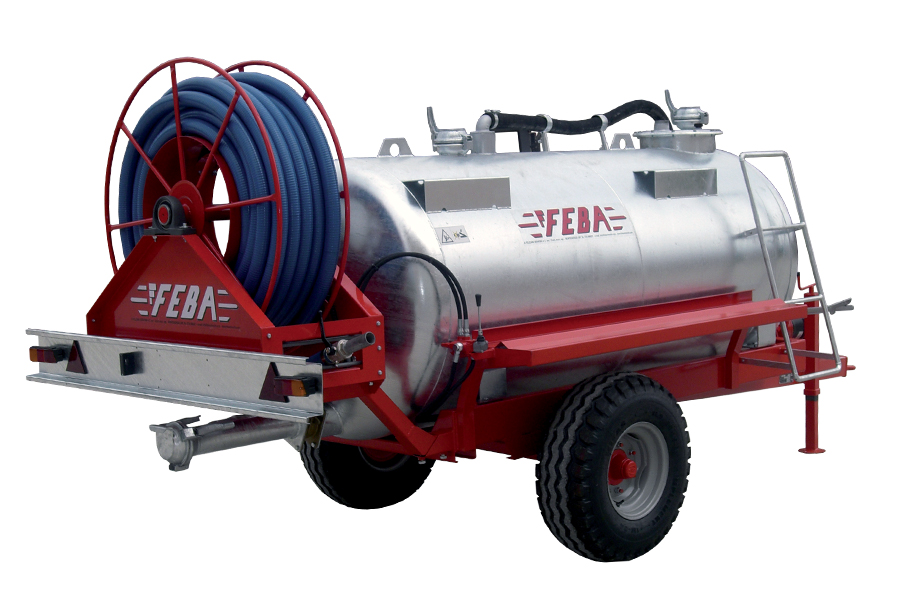

SINGLE-AXLE TRAILER

SINGLE-AXLE TRAILER

Type-tested far sewage transport with warmed or painted galvanized tank
SINGLE-AXLE TRAILER
SINGLE-AXLE TRAILER
SINGLE-AXLE TRAILER

STANDARD EQUIPMENT

Independent frame from the cistern
Tank with fully opening bottom
Suspension of rigid axle
Cardan shaft
Gate manually operated
mm. 2000 2000 mm iron pipe and hose
exhaust fan jet and lateral jet
Slave-foot mechanical
lighting system and registration road documents

APPLICATIONS ON REQUEST

Slave-hydraulic
Hydraulic Brake BC 35
Suspension with crossbow
Centrtifuga pump unit with hydraulic swivel jet
Hydraulic opening device gate 35 BC
side gate 120 mm - 150 mm
Burying a 2 or 4 subsoilers
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
CARRO BOTTE MONOASSE
SINGLE-AXLE TRAILER
TIPO CAPACIA' DEPRESSIONE SARAC. RUOTE FRENI
TYPE CAPACITY VACUUM PUMP GATE VALVE WHEELS BRAKES
BC 35 3000 lt. MEC. 4000 mm 120 11.5/80 - 15.3 265/70R19.5 us. MECC.
BC 35 3000 lt. MEC. 4000 mm 120 11.5/80 - 15.3 265/70R19.5 us. MECC.
BC 60 5000 lt. MEC. 5000 mm 150 385/65R22.5 us. PNEUM.
IDRAUL.
BC 60 5000 lt. MEC. 5000 mm 150 385/65R22.5 us. PNEUM.
IDRAUL.

DA FARE.

DA FARE.
