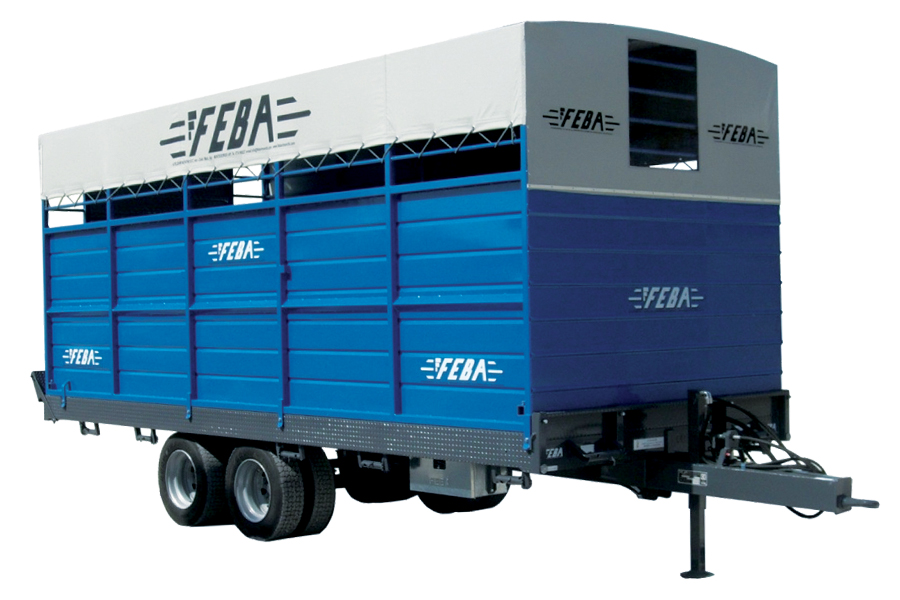

REMOVABLE FRAME FOR CATTLE APPLIED TO ANY TRAILER

For transport livestock to be applied on the straddle

STANDARD EQUIPMENT

Bottomless single body
Sheet steel on three sides height 1.25 mt
Tubular iron upper box
Slurry collection tank positioned under the trailer floor

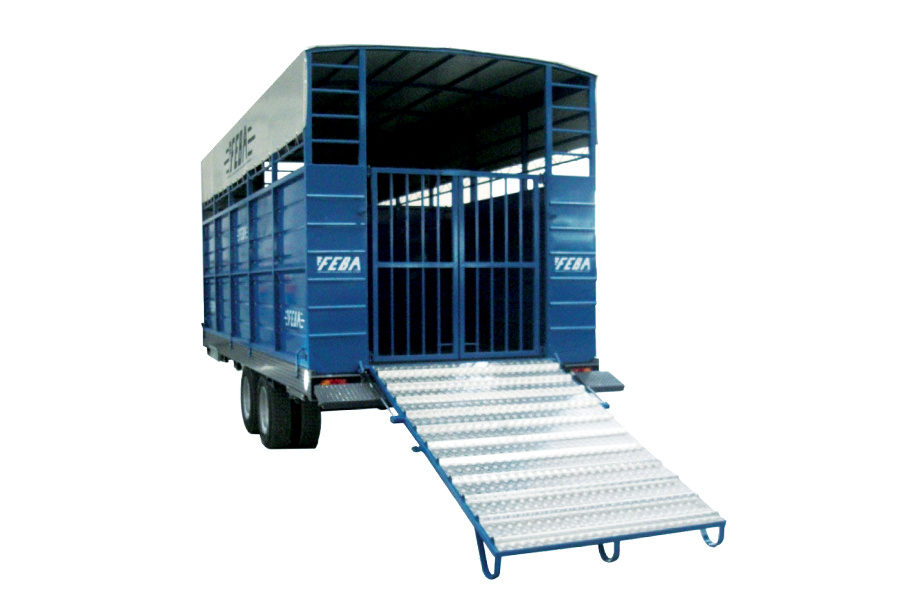

Rear ramp lined with almond patterned aluminium
Brackets for securing to trailer
Possibility of dismounting by means of 4 mechanical feet (optional extra)

OPTIONAL EXTRAS

Box body sheet
Internal divider lined with sheet steel
Inner two-door overlapping back gate that if open acts as a rail for animals cargo
4 mechanical feet for lifting while demounting
Made to measure for any kind of trailer

Data Sheet

SCHEDA TECNICA

DATA SHEET

CENTINA SMONTABILE PER TRASPORTO BESTIAME APPLICABILE SU QUALSIASI RIMORCHIO REMOVABLE FRAME FOR CATTLE APPLIED TO ANY TRAILER
TIPO	DIMENSIONE MT Lunghezza x Larghezza x Altezza
TYPE	DIMENSIONS MT Lenght x Width x Height
RP50	4.20x2.20x2.00
RP50	4.20x2.20x2.00
RP60	5.00x2.45x2.00
RP60	5.00x2.45x2.00
TCS55	5.50x2.45x2.00
TCS55	5.50x2.45x2.00
TCS50 - TCS60 - ATLAS5	6.20x2.45x2.00
TCS50 - TCS60 - ATLAS5	6.20x2.45x2.00
ATLAS6	6.50x2.45x2.00
ATLAS6	6.50x2.45x2.00
ATLAS7	6.80x2.45x2.00
ATLAS7	6.80x2.45x2.00
ATLAS8	7.50x2.45x2.00
ATLAS8	7.50x2.45x2.00
ATLAS9	8.00x2.45x2.00
ATLAS9	8.00x2.45x2.00
ATLAS10	9.00x2.45x2.00
ATLAS10	9.00x2.45x2.00
