TRILATERAL TRAILER TWIN AXLE

TRILATERAL TRAILER TWIN AXLE

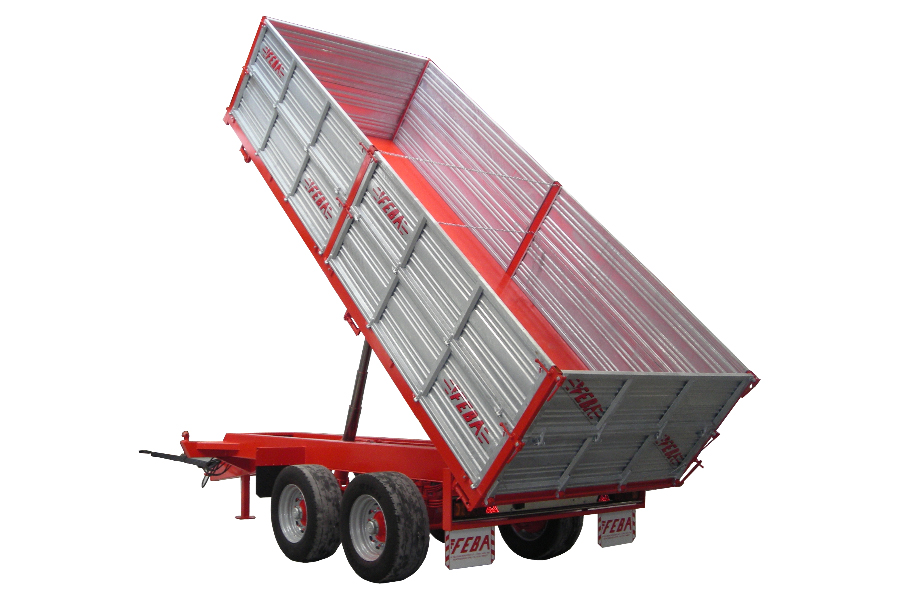

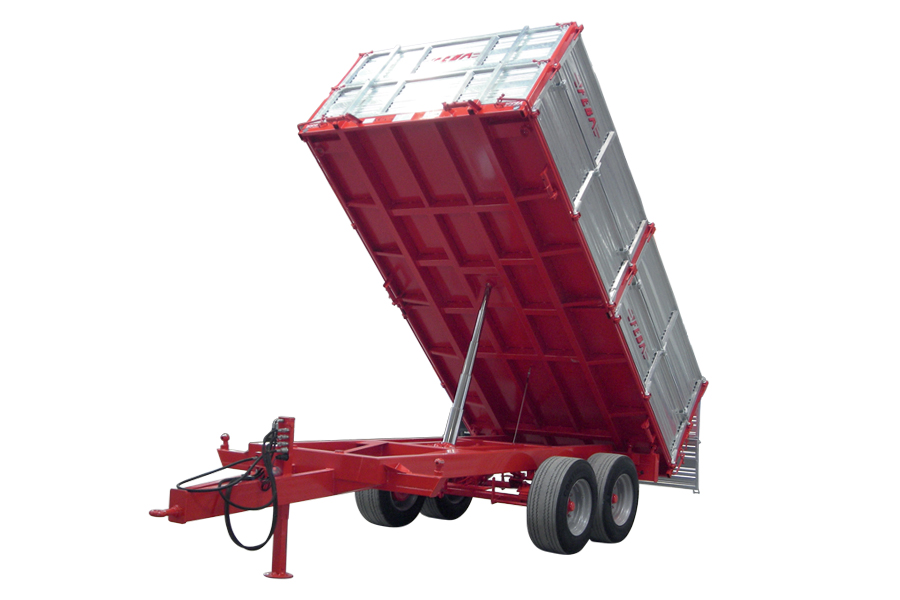

Rocking beam with cantilever leaf-springs tipper opening on three sides
TRILATERAL TRAILER TWIN AXLE
TRILATERAL TRAILER TWIN AXLE
TRILATERAL TRAILER TWIN AXLE

STANDARD EQUIPMENT

Smooth sheet steel floor
Mechanical drawbar jack
Hydraulic drawbar jack (FBN14T and FBN16T)
Hydraulic tipping and quick coupling with limit stop valve
Top-hinged tailboard
Front winches
Light system and documents for on-road registration

OPTIONAL EXTRAS

Tipper geared pump, lt. 60 power shaft
Tipper geared pump, lt. 100 power shaft with container lowered from driver's seat
Tipper pump operation with hydraulic motor
Hydraulic drawbar jack with locking valve (*FBN11)
Embossed sheet steel floor
Front and rear imperials
Cereal hatch
Top-hinged sides
Side winches
Tube for sheet
Spare wheel bay
Toolbox
Braking corrector
Steerable rear axle (*FBN11)
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
RIMORCHIO BIASSE TRILATERALE
TRILATERAL TRAILER TWIN AXLE
TIPO DIMENSIONE MT. PIANALE E SPONDE PORTATA OMOL. COMPL. KG TARA KG. RUOTE FRENI
TYPE FLOOR AND SIDES DIMENSIONS MT. TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG WHEELS BRAKES
FBN 10T
(tandem))
ass. post. fisso 		4.50x2.20x0.50
4.50x2.40x0.50 		11800 2300 385/55R19.5 nv.
13.0/55-16 PR18 		PNEUM.
IDRAUL.
FBN 10T
(tandem))
ass. post. fisso 		4.50x2.20x0.50
4.50x2.40x0.50 		11800 2300 385/55R19.5 nv.
13.0/55-16 PR18 		PNEUM.
IDRAUL.
FBN 11/60T
ruote gemellate
ass. post. fisso 		4.80x2.40x0,50 6000 2800 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		IDRAUL.
FBN 11/60T
twinned wheels
ass. post. fisso 		4.80x2.40x0,50 6000 2800 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		HIDRAULIC
FBN 11/60T
ruota singola
ass. post. fisso 		4.80x2.40x0,50 6000 2800 285/55R19.5 us.
385/55R19.5 nv.
385/55R19.5 nv. 		IDRAUL.
FBN 11/60T
single wheel
ass. post. fisso 		4.80x2.40x0,50 6000 2800 285/55R19.5 us.
385/55R19.5 nv.
385/55R19.5 nv. 		HIDRAULIC
FBN 11T
ruote gemellate
ass. post. fisso 		4.80x2.40x0.50 11000 2800 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		PNEM.
IDRAUL.
FBN 11T
twinned wheels
ass. post. fisso 		4.80x2.40x0.50 11000 2800 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		PNEM.
HIDRAULIC
FBN 11T
ruota singola
ass. post. fisso 		4.80x2x40x0x50 11000 2800 285/55R19.5 us.
385/55R19.5 nv.
385/55R19.5 nv. 		PNEM.
IDRAUL.
FBN 11T
single wheel
ass. post. fisso 		5.00x2.20
5.00x2.45 		11000 2800 285/55R19.5 us.
385/55R19.5 nv.
385/55R19.5 nv. 		PNEM.
HIDRAULIC
FBN 14T
ruota singola
ass. post. fisso 		5,50x2,40x0,60 14000 3500 435/55R19.5 us.
425/65R22.5 us. 		PNEM.
IDRAUL.
FBN 14T
single wheel
ass. post. fisso 		5,50x2,40x0,60 14000 3500 435/55R19.5 us.
425/65R22.5 us. 		PNEM.
HIDRAULIC
FBN 16T
ruota singola
ass. post. fisso 		6,20x2,40x0,60 14000 4260 425/65R22.5 ric.
500/60R22.5 us. 		PNEM.
IDRAUL.
FBN 16T
single wheel
ass. post. fisso 		6,20x2,40x0,60 14000 4260 425/65R22.5 ric.
500/60R22.5 us. 		PNEM.
HIDRAULIC
