TRAILER SINGLE AXLE DOUBLE USE

TRAILER SINGLE AXLE DOUBLE USE

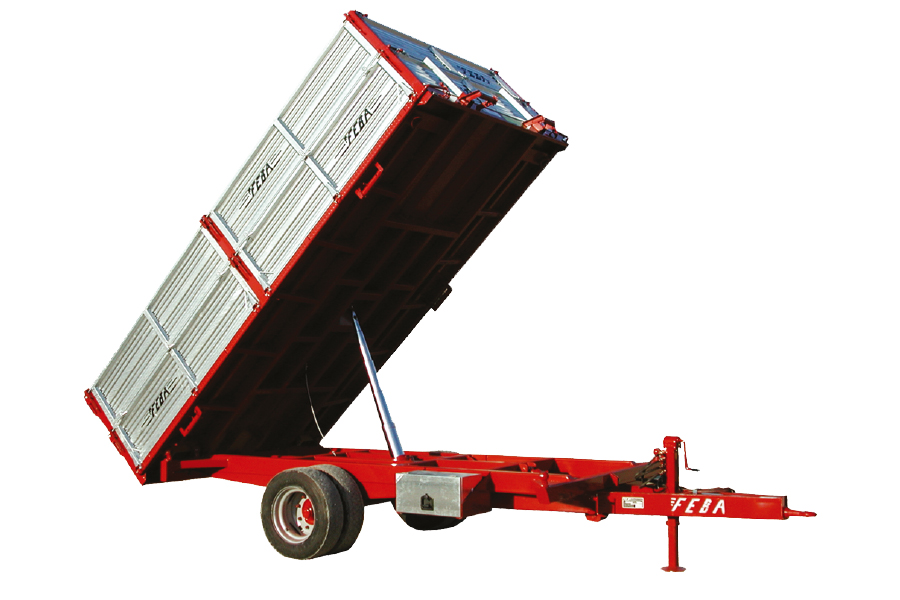

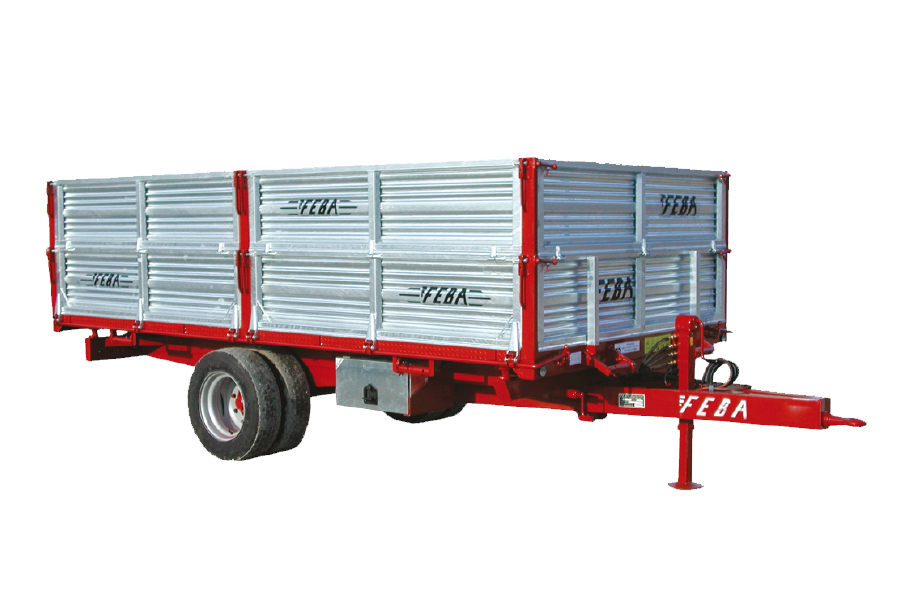

Double use trilateral tipper with twin wheels approved for transporting crawlers, bales and cereals
TRAILER SINGLE AXLE DOUBLE USE
TRAILER SINGLE AXLE DOUBLE USE
TRAILER SINGLE AXLE DOUBLE USE

STANDARD EQUIPMENT

Embossed sheet steel floor with longitudinal and transverse reinforcements
Hydraulic tipping with quick-coupling flexible tube
Mechanical drawbar jack
Limit stop valve
Front and side winches
Top-hinged tailboard
Light system and documents for on-road registration

OPTIONAL EXTRAS

Hydraulic drawbar jack with locking valve
Geared pump and power shaft
Braking regulation valve
Small tailboard
Top-hinged sides
Cereal hatch
Toolbox
Side winches
Tube for sheet
Spare wheel bay
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
RIMORCHIO DUMPER MONOASSE
TRAILER SINGLE AXLE DUMP TRUCKS
TIPO DIMENSIONE MT.
PIANALE E SPONDE 		PORTATA OMOL. COMPL. KG TARA KG. RUOTE GEMELLATE FRENI
TYPE FLOOR AND SEDES
DIMENSIONS 		TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG TWIN WHEELS BRAKES
FB 41 4.10x2.10x0.50 6000 1680 215/75R17.5 us.
215/75R17.5 nv. 		IDRAUL.
FB 41 4.10x2.10x0.50 6000 1680 215/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
FB 45 4.50x2.30x0.50 6000 1955 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		IDRAUL.
FB 45 4.50x2.30x0.50 6000 1955 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
FB 50 5.00x2.40x0.50 6000 2380 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		IDRAUL.
FB 45 5.00x2.40x0.50 6000 2380 235/75R17.5 us.
245/70R19.5 us.
235/75R17.5 nv. 		HIDRAULIC
