SINGLE-AXLE TRAILER

SINGLE-AXLE TRAILER

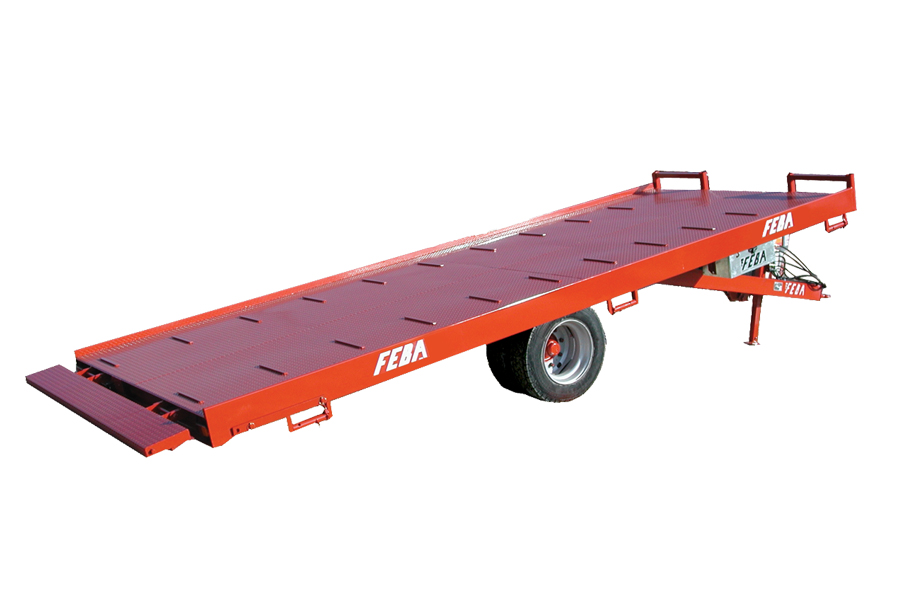

Rear tipper homologated for transporting tracked vehicles and bales type P
SINGLE-AXLE TRAILER
SINGLE-AXLE TRAILER
SINGLE-AXLE TRAILER

STANDARD EQUIPMENT

UNP steel profile chassis on rigid axle
Embossed sheet steel floor with longitudinal and transverse reinforcements
Hydraulic tipping with quick-coupling double-effect piston
Mechanical drawbar jack
Front and side winches
Connectors for front and rear imperial
Light system and documents for on-road registration

OPTIONAL EXTRAS

Hydraulic brake
Braking regulation valve
Side winches
Hydraulic drawbar jack with locking valve
Toolbox

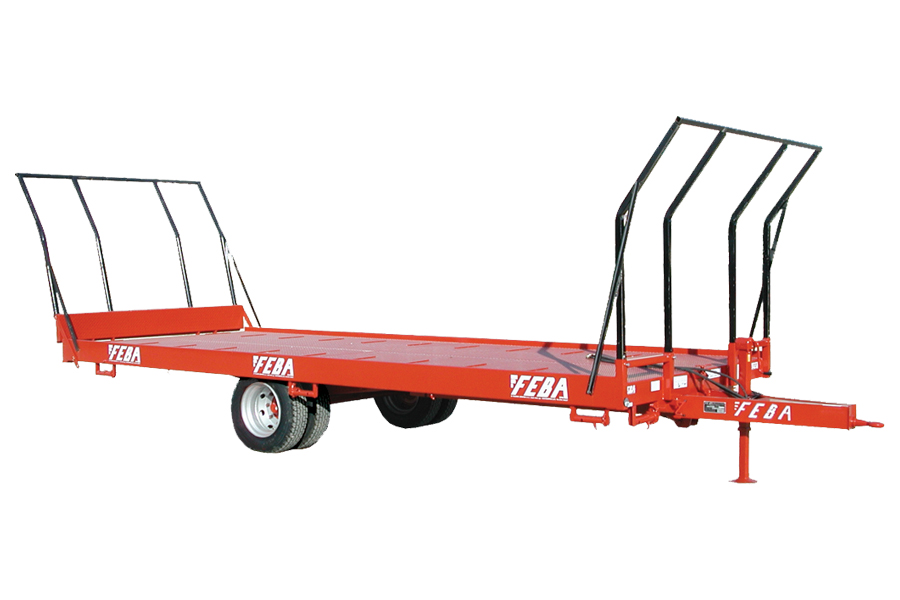

Front and rear imperial for per bales
Openable headboard cm. 30
Sides on all models
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
RIMORCHIO MONOASSE
SINGLE-AXLE TRAILERS
TIPO DIMENSIONE PIANALE PORTATA OMOL. COMPL. KG TARA KG. RUOTE FRENI
TYPE FLOOR DIMENSIONS TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG WHEELS BRAKES
*RP 50
ruota singola 		3.60x1.88
mis. est. 2.45 		5000 1000 225/75R17.5 us.
20.0/75-15.3 nv. 		MECC.
*RP 50
single wheel 		3.60x1.88
mis. est. 2.45 		5000 1000 225/75R17.5 us.
20.0/75-15.3 nv. 		TIRES
RP 50
ruote gemellate 		4.20x2.00
4.20x2.20 		5000 1160
1250 		225/70R15 nv. MECC.
RP 50
twinned wheels 		4.20x2.00
4.20x2.20 		5000 1160
1250 		225/70R15 nv. TIRES
RP 60
ruote gemellate 		4.50x2.20 6000 1400 205/65R17.5 us.
205/65R17.5 nv. 		IDRAUL.
RP 60
twinned wheels 		4.50x2.20 6000 1400 205/65R17.5 us.
205/65R17.5 nv. 		HIDRAULIC
FBRI TC 50
ruote gemellate 		4.80x2.20
4.80x2.45 		5000 1490 215/75R17.5 us.
215/75R17.5 nv. 		MECC.
FBRI TC 50
twinned wheels 		4.80x2.20
4.80x2.45 		5000 1490 215/75R17.5 us.
215/75R17.5 nv. 		TIRES
**FB 60
ruote gemellate 		5.00x2.20
5.00x2.45 		6000 1670 215/75R17.5 us.
215/75R17.5 nv. 		IDRAUL.
**FB 60
twinned wheels 		5.00x2.20
5.00x2.45 		6000 1670 215/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
TCS 55
ruote gemellate 		5.50x2.20
5.50x2.45 		6000 1780 205/65R17.5 us.
225/70R15 nv. 		IDRAULIC.
TCS 55
twinned wheels 		5.50x2.20
5.50x2.45 		6000 1780 235/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
TCS 50
ruote gemellate 		6.20x2.45 5000 2000 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		MECC.
TCS 50
twinned wheels 		6.20x2.45 5000 2000 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		TIRES
**TCS 60
ruote gemellate 		6.20x2.45 6000 2000 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		IDRAUL.
**TCS 60
twinned wheels 		6.20x2.45 6000 2000 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
**TCS 66
ruote gemellate 		6.60x2.45 6000 2040 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		IDRAUL.
**TCS 66
twinned wheels 		6.60x2.45 6000 2040 215/75R17.5 us.
235/75R17.5 us.
215/75R17.5 nv. 		HIDRAULIC
