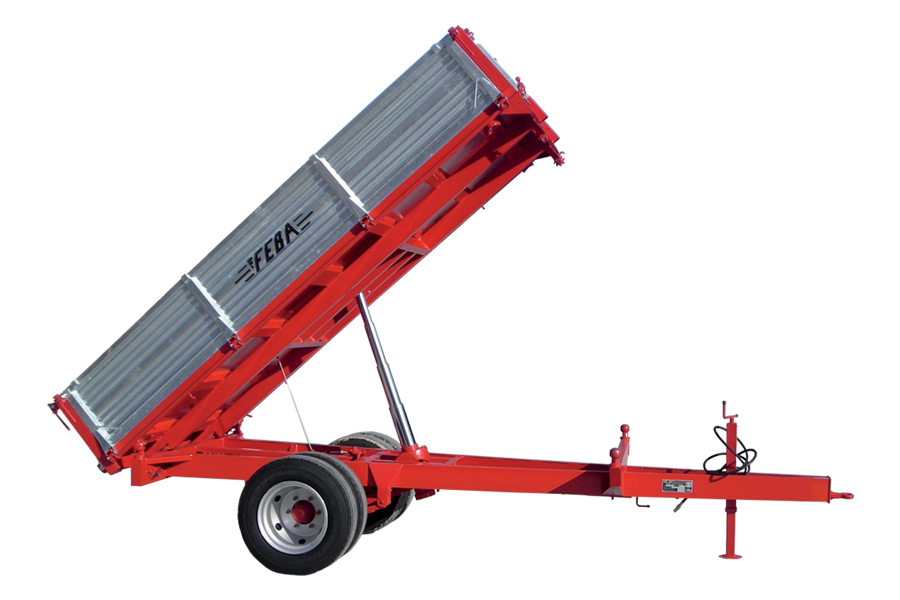

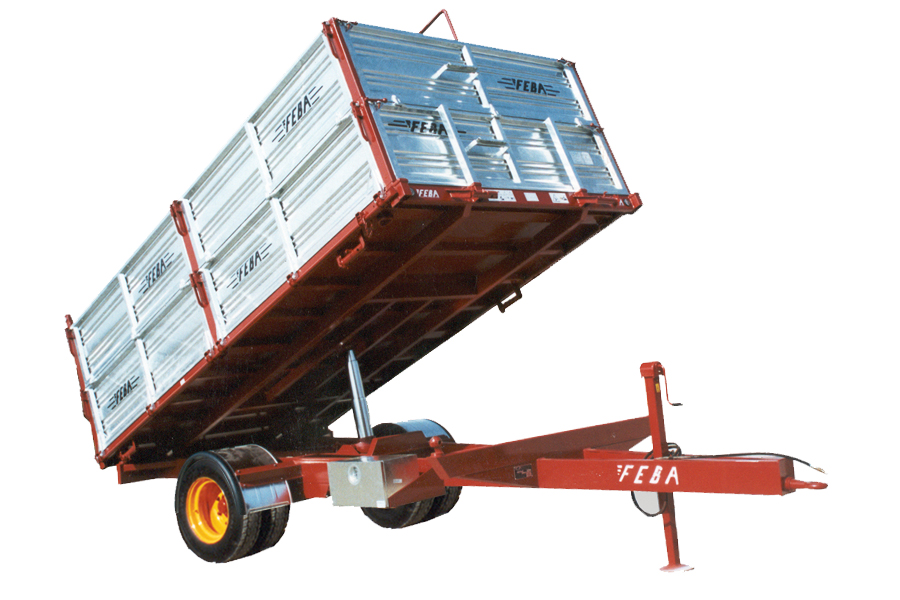

SINGLE-AXLE TRAILER TRIMMER

SINGLE-AXLE TRAILER TRIMMER

Approved folding trilateral
SINGLE-AXLE TRAILER TRIMMER
SINGLE-AXLE TRAILER TRIMMER
SINGLE-AXLE TRAILER TRIMMER

DOTAZIONI DI SERIE

Frame profiles UPN on rigid axle
Floor with smooth finish
tilting hydraulic hose with quick coupling and limit valve
Slave-foot mechanical
upside tailgate opening
front winches
Light and documents system for registration of the road

APPLICATIONS ON REQUEST

Gear pump and cardan shaft
hydraulic brake
brake control valve
sheet metal floor rusticated
Slave-hydraulic with safety valve
cereals nozzle
Opening upside - down side rails
Tool box
lateral winches
Tube for tarpaulin
Spare Wheel Holder
Suspension with crossbow
fenders
wheel drive kit
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
RIMORCHIO MONOASSE TRILATERALE
SINGLE-AXLE TRAILER TRIMMER
TIPO DIMENSIONE MT. PIANALE E SPONDE PORTATA OMOL. COMPL. KG TARA KG. RUOTE FRENI
TYPE FLOOR AND SIDES DIMENSIONS MT. TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG WHEELS BRAKES
FBRI 15
ribaltamento posteriore 		2,40x1,40x0,35 1500 430 225/70R15 us. MECC.
FBRI 15
back tipping 		2,40x1,40x0,35 1500 430 225/70R15 us. MECC.
FBRI 35 2.60x1.60x0.40 3500 630 10.0/80-12 nv. MECC.
FBRI 35 2.60x1.60x0.40 3500 630 10.0/80-12 nv. MECC.
FBRI 40 2.80x1.80x0.40 4000 860 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
FBRI 40 2.80x1.80x0.40 4000 860 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
FBRI 43 3.00x1.80x0.40 4300 950 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
FBRI 43 3.00x1.80x0.40 4300 950 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
FBRI 43 3.00x2.00x0.40 4300 1000 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
FBRI 43 3.00x2.00x0.40 4300 1000 10.0/75-15.3 nv.
235/75R17.5 us. 		MECC.
*FBRI 50T4 3.60x2.00x0.50 5000 1200 11.5/80-15.3 nv.
265/70R19.5 us. 		MECC.
*FBRI 50T4 3.60x2.00x0.50 5000 1200 11.5/80-15.3 nv.
265/70R19.5 us. 		MECC.
*FBRI 50T4I 3.60x2.00x0.50 6000 1330 11.5/80-15.3 nv.
265/70R19.5 us. 		IDRAUL.
*FBRI 50T4I 3.60x2.00x0.50 6000 1330 11.5/80-15.3 nv.
265/70R19.5 us. 		HIDRAULIC
*FBRI 50T6 4.10x2.10x0.50 5000 1450 11.5/80-15.3 nv.
285/70R19.5 us. 		MECC.
*FBRI 50T6 4.10x2.10x0.50 5000 1450 11.5/80-15.3 nv.
285/70R19.5 us. 		MECC.
*FBRI 50T6I 4.10x2.10x0.50 6000 1600 11.5/80-15.3 nv.
285/70R19.5 us. 		IDRAUL.
*FBRI 50T6I 4.10x2.10x0.50 6000 1600 11.5/80-15.3 nv.
285/70R19.5 us. 		HIDRAULIC
*FBRI 60T9 4.50x2.30x0.50 6000 1880 435/55R19.5 us.
385/65R19.5 us. 		IDRAUL.
*FBRI 60T9 4.50x2.30x0.50 6000 1880 435/55R19.5 us.
385/65R19.5 us. 		HIDRAULIC
