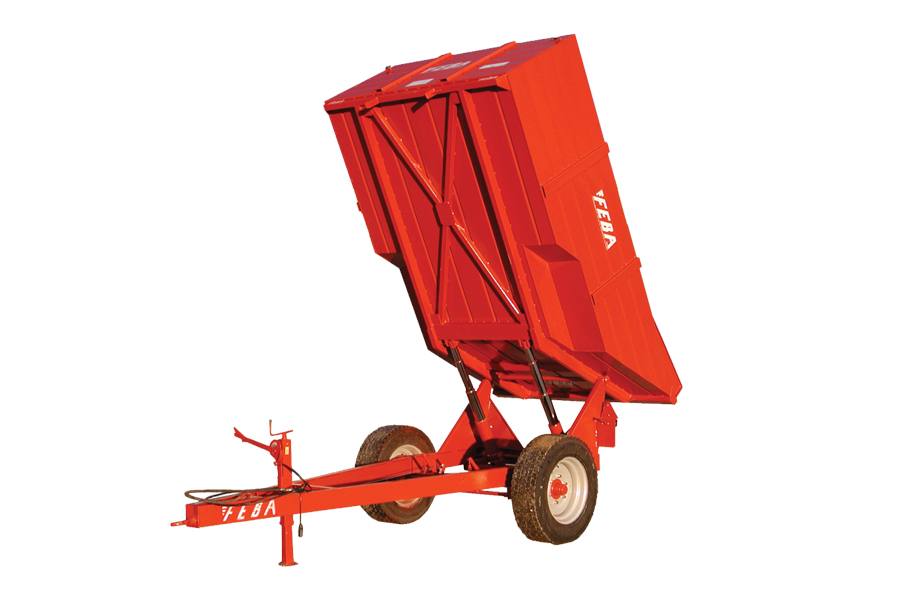

SINGLE-AXLE TRAILER

SINGLE-AXLE TRAILER

Homologated hydraulic tipper for transporting grapes and cereals with iron or stainless steel tank
SINGLE-AXLE TRAILER
SINGLE-AXLE TRAILER

STANDARD EQUIPMENT

Rigid frame structure
High gauge epoxy entirely varnished tank
Mechanical drawbar jack
Quick clutch hydraulic capsizing
Light system and documents for on-road registration

OPTIONAL EXTRAS

Geared pump and power shaft
Hydraulic brake
Braking regulation valve
Hydraulic drawbar jack with locking valve
Hand-washing canister
Tube and hooks for sheet
Side extensions cm. 30 in iron
Side extensions cm. 30 in stainless steel
Galvanized tank
Data Sheet
  • SCHEDA TECNICA
    DATA SHEET
*Ribaltamento con n.2 Pistoni
RIMORCHIO MONOASSE
SINGLE-AXLE TRAILER
TIPO DIMENSIONE VASCA PORTATA OMOL. COMPL. KG TARA KG RUOTE GEMELLATE FRENI
TYPE DIMENSIONS TANK TOTAL HOMOLOGAT. CAPACITY KG UNLADEN WEIGHT KG TWINNED WHEELS BRAKES
RIU 30 2.60x1.62x0.80
(h 1,42 da terra) 		3000 615 10.0/80-12 nv.
10.0/75-15.3 nv. 		MECC.
RIU 30 2.60x1.62x0.80
(h 1,42 from ground) 		3000 615 10.0/80-12 nv.
10.0/75-15.3 nv. 		MECC.
RIU 40 2.80x1.90x0.80
(h 1,42 da terra) 		4000 715 10.0/75-15.3 nv.
235/75R17.5 		MECC.
RIU 40 2.80x1.90x0.80
(h 1,42 from ground) 		4000 715 10.0/75-15.3 nv.
235/75R17.5 		MECC.
*RIU 50 3.25x2.00x0.95
(h 1,66 da terra) 		5000 1120 11.5/80-15.3 nv.
265/70R19.5 us. 		MECC.
*RIU 50 3.25x2.00x0.95
(h 1,66 from ground) 		5000 1120 11.5/80-15.3 nv.
265/70R19.5 us. 		MECC.
